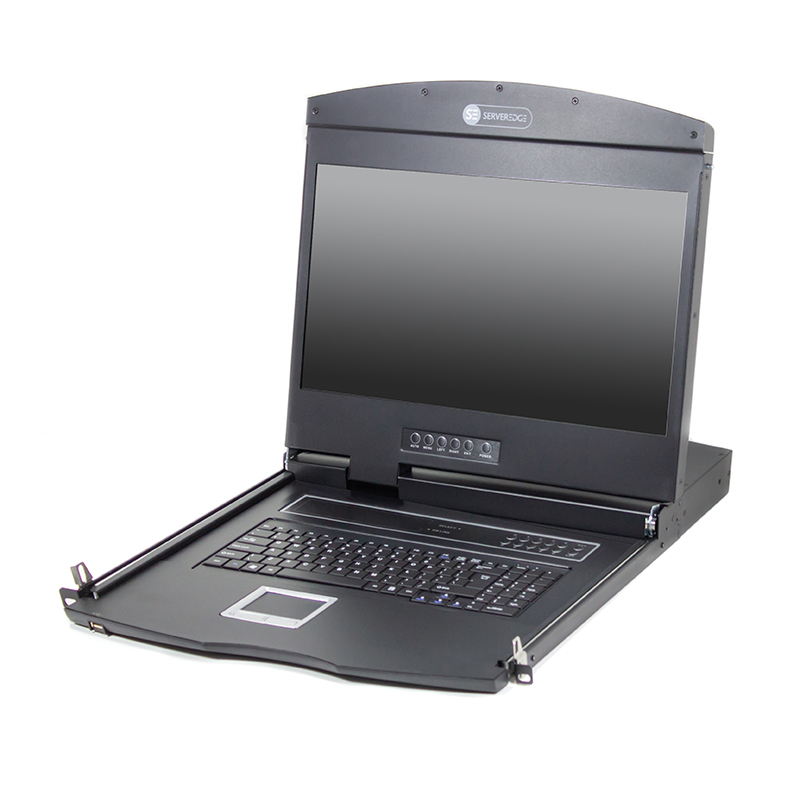

The Serveredge KVM console integrates a 19” Wide Screen LCD display, slim keyboard and a mouse touchpad to manage single or multiple computers across a network. The KVM uses only 1RU of rack space, delivering a space friendly solution for complete management.

Space Friendly & Less Clutter
1RU of rack space is all it requires, allowing extra storage area so your cabinet rack will be much more organised. Just slide open the 19” console display when it is required and close after use and slide back into place. The KVM can also be mounted onto your cabinet rack as an option.

Reduce IT cost & maximise budget
Serveredge LCD KVM console provides all the essential equipment to allow you to manage multiple computer(s) at an affordable cost. There’s no need to spend on multiple displays and keyboards as you will only require the one console to manage and control productivity.

Quick Assembly and Warranty
The LCD KVM’s comes with a user friendly quick installation manual and 1 year warranty for the extra piece of security.

PRODUCT SPECIFICATION

Audio	No
Daisy-Chain	Yes
Display Size	19 inch
KVM Ports	× 1
Panel Type	Wide AHVA TFT-LCD
PC interface	USB, PS/2
PC Video Type	VGA
Rack-Mountable	Yes
RU Height	1RU
Native Resolution	1366*768 @60Hz
Console Interface(s)	PS/2, USB
Cables Included	Yes

ENVIRONMENTAL
* Operating Temperature -10 to 50°C (14°F to 122°F)
* Storage Temperature -20 to 60°C (-4°F to 140°F)
Humidity 0-80% RH

DIMENSIONS (PRODUCT)
* Product Height: 150 mm
* Product Length: 710 mm
* Product Width: 590 mm
* Product Weight: 8.32 kg

DIMENSIONS (SHIPPING)
* Product Length: 740 mm
* Product Width: 610 mm
* Product Height: 185 mm
* Product Weight: 14.12 kg

PRODUCT INCLUDES
* LCD KVM Console × 1
* KVM Cable × 1
* Quick Installation Guide × 1
* Instruction Manual (CD) × 1
* 12v AC Power Adapter × 1
* Standard Rail (Pair) × 1
* Power Cord × 1
* Lock Ears (Pair) × 1

WARRANTY
Serveredge products are manufactured at the highest standards using highest quality materials at an affordable price. Our Serveredge LCD KVMs come with a 1-year warranty for that extra piece of mind.

PRODUCT FEATURE

* Ultra thin keyboard with keypad
* Compatible with all 1RU 19” standard cabinets
* Secure front panel with lock
* Automatic On/Off power
* Mouse touchpad with two function button
* Compatible with PS/2, USB standard interface
* Supports maximum resolution of 1920*1080
* (Native resolution of 1366*768)
* Supports multiple operating systems: WIN95/98/98SE/ME/200/XP, WIN 7, WIN NT, UNIX, LINUX
* Compliant with DDC, DDC2, DDC2B standard and VESA standard
* Supports VGA, SVGA, XGA video input
